Servis ömrünü önemli ölçüde uzatan benzersiz özelliklerle donatılmış yüksek kaliteli Holmatronun çok amaçlı HSC 50S 5 hidrolik silindir modelidir. Holmatronun Çok Amaçlı silindirlerin 50 farklı modeli mevcuttur.
| Details | ||
| Articlenumber | 100.112.303 | |
| Basic specifications | ||
| model | HSC 50 S 5 | |
| max. working pressure | 720 / 72 (bar/Mpa) | 10443 psi |
| Performance | ||
| tonnage | 50 t | 110231 lb |
| stroke | 50 mm | 2 in |
| closed height | 117 mm | 4.6 in |
| capacity | 510.4 kN / 52 t / 510.4 / 52 (kN/t) | 114742 lbf |
| effective pressure area | 70.9 cm2 | 11 sq. in. |
| General specifications | ||
| required oil content (effective) | 354 cc | 12 oz |
| acting type | single | |
| return type | spring | |
| material | steel | |
| cylinder type | short stroke | |
| connection | A 118 | |
| Dimensions, weight and temperature | ||
| weight, ready for use | 9.7 kg | 21.4 lb |

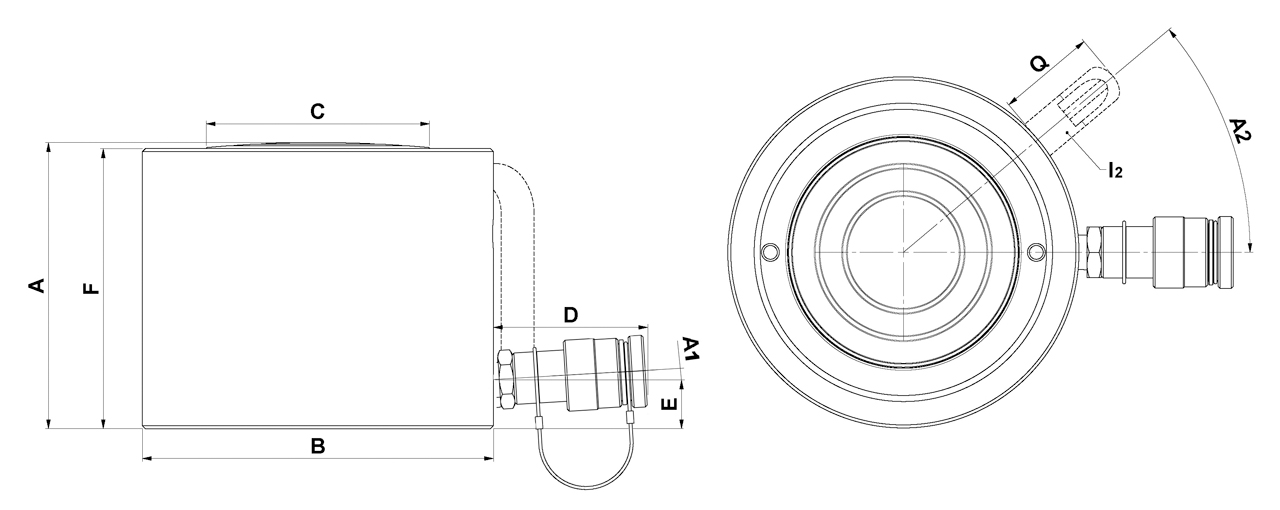

| Technical drawing dimensions | ||
| dimension A | 117 mm | 4.6 in |
| dimension B | 128 mm | 5 in |
| dimension C | 75 mm | 3 in |
| dimension D | 76 mm | 3 in |
| dimension E | 19 mm | 0.7 in |
| dimension F | 116 mm | 4.6 in |
| Norms | ||
| ASME | B30.1 | |
